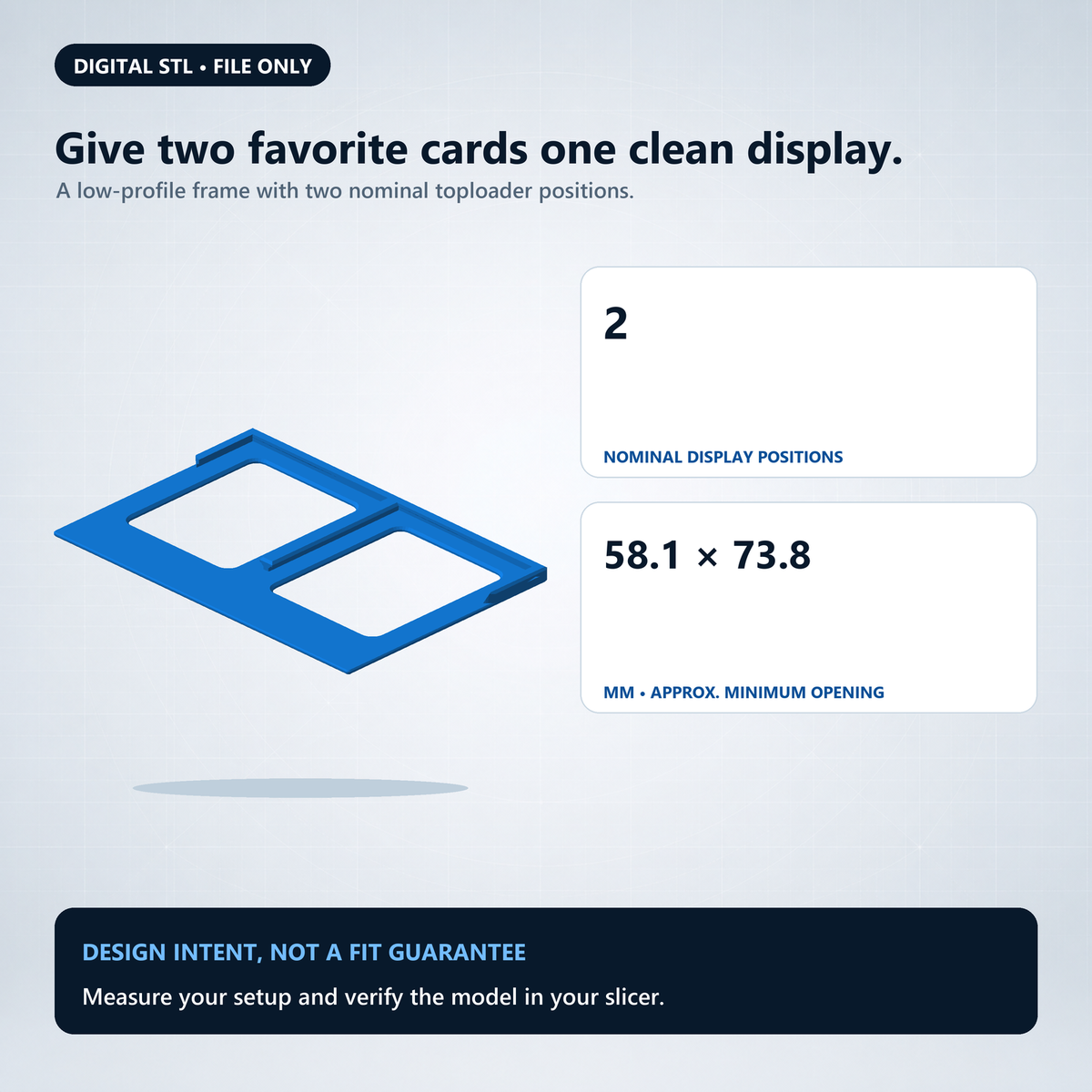

Two-position layout
Two side-by-side nominal 77.724 x 103.124 mm envelopes organize a paired display in one frame.
Product format:
STL file
Santos Art Factory
2×1 Toploader Holder V2 STL – Two-Card Display Frame
Regular price$4.99Regular price
Two display positions. One low-profile frame. A digital STL for presenting two compatible toploaders side by side.
V2 digital STL model
- Two nominal 77.724 x 103.124 mm side-by-side position envelopes
- Approximately 58.100 x 73.800 mm minimum viewing opening per position
- One watertight body with 932 triangles and zero boundary or non-manifold edges
Description
Display two compatible toploaders side by side in a clean, low-profile frame you print at home.
This V2 digital STL is one watertight body with two nominal display positions. The model measures 163.648 × 110.724 × 6.300 mm when interpreted in millimeters.
What you receive
- One 2×1 Toploader Holder V2 STL file
- Two nominal 77.724 × 103.124 mm position envelopes
- Approximately 58.100 × 73.800 mm minimum viewing opening per position
- A mesh-checked model with 932 triangles and zero boundary or non-manifold edges
Before you print
STL files do not store a unit, so confirm the full dimensions in your slicer. One reference profile generated support material in the minimum-Z orientation; inspect orientation, supports, bridges, first-layer contact, and every layer for your own machine.
Digital STL file only. No physical frame, toploaders, cards, filament, or G-code is included. Physical fit, retention, durability, and print performance have not been tested. Measure your supplies and allow for printer and material tolerances before purchasing or printing.
What you receive
One V2 digital STL for a flat two-position display frame, measuring 163.648 x 110.724 x 6.300 mm when interpreted in millimeters. No physical frame, toploaders, cards, filament, or G-code is included.
Fit and dimensions
Each nominal position envelope measures 77.724 x 103.124 mm, with an approximately 58.100 x 73.800 mm minimum viewing opening and 3.000 mm between the two positions. These are geometry measurements, not a fit guarantee. Compare them with your actual toploaders and allow for printer and material tolerances.
Before you print
STL files do not store a unit. This geometry is interpreted as millimeters, so confirm that your slicer shows 163.648 x 110.724 x 6.300 mm before generating a toolpath. One reference profile generated support material in the minimum-Z orientation; inspect bridges, supports, first-layer contact, and the complete preview for your own printer.
Validation status
The supplied geometry validates as one watertight body with 932 triangles, zero boundary edges, and zero non-manifold edges. It has not been physically fit-, retention-, durability-, or print-tested, so results may vary.

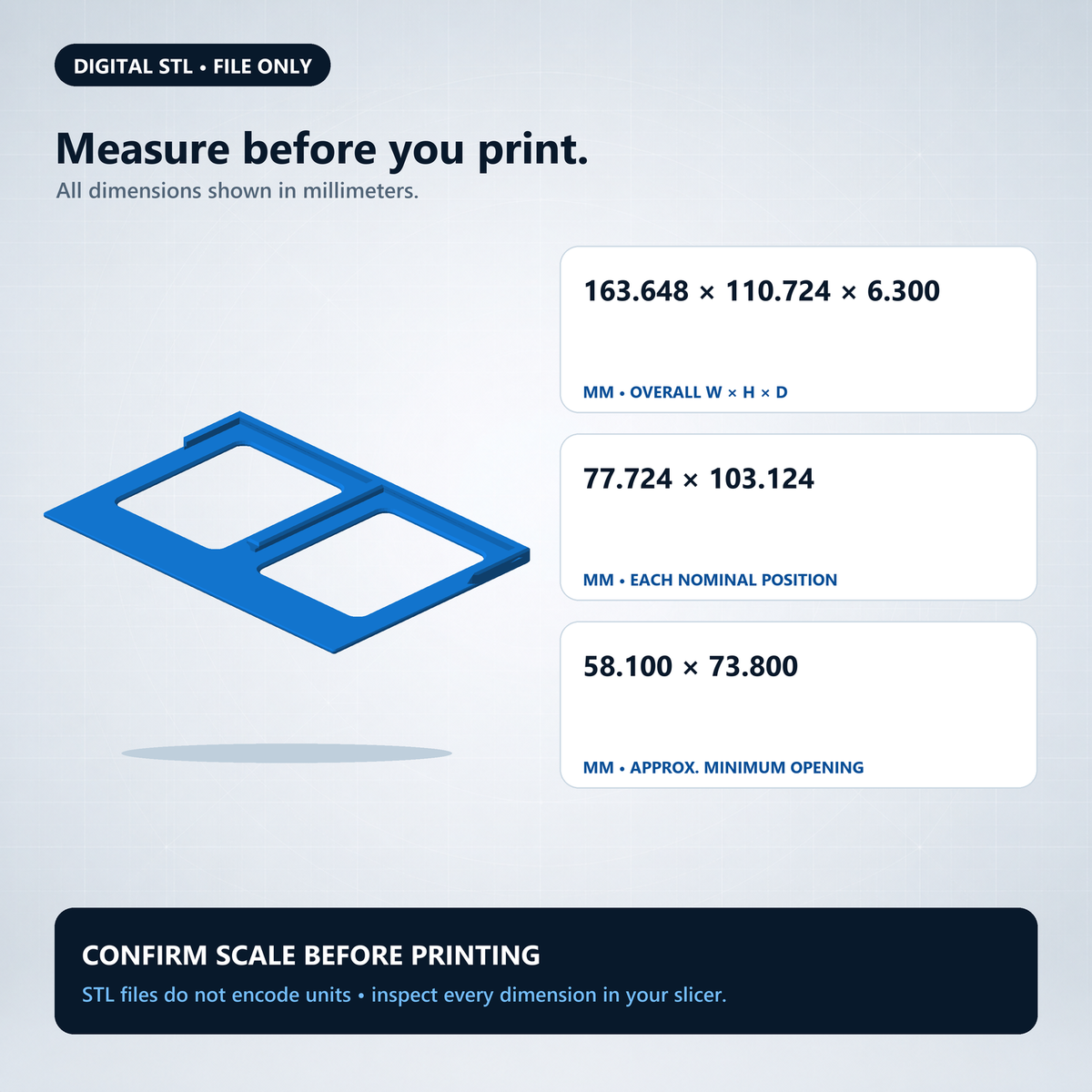

Measured V2 geometry
Frame two toploaders in one clean footprint
The flat frame separates two nominal positions by 3.000 mm. Fit and retention have not been physically verified, so compare every measurement with your actual toploaders before printing.
Measured viewing openings
The minimum opening is approximately 58.100 x 73.800 mm per position. Verify how much of your card you want visible.
Low-profile geometry
The complete digital model measures 163.648 x 110.724 x 6.300 mm when interpreted in millimeters.

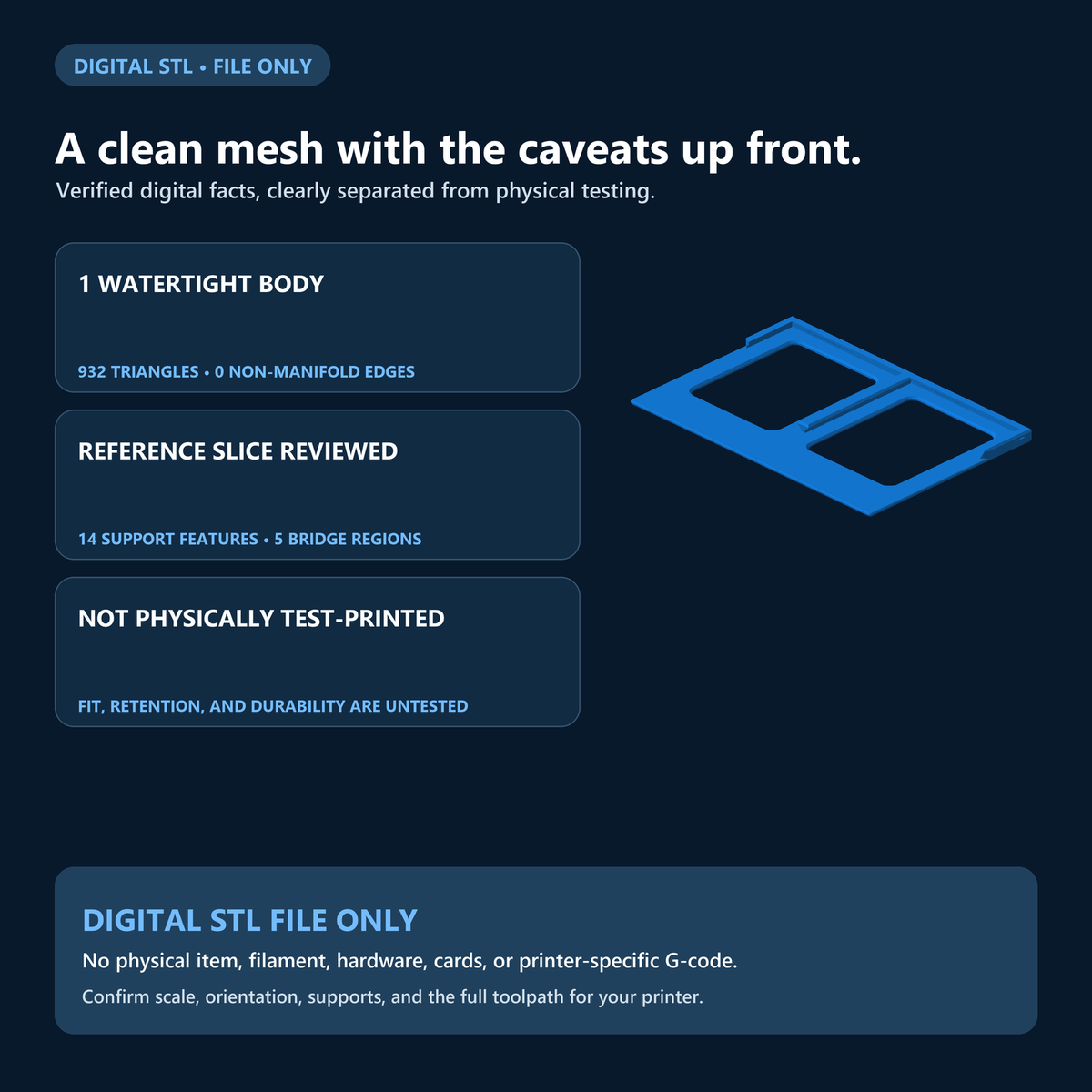

Digitally validated mesh
One watertight body, 932 triangles, and zero boundary or non-manifold edges. Physical performance remains untested.

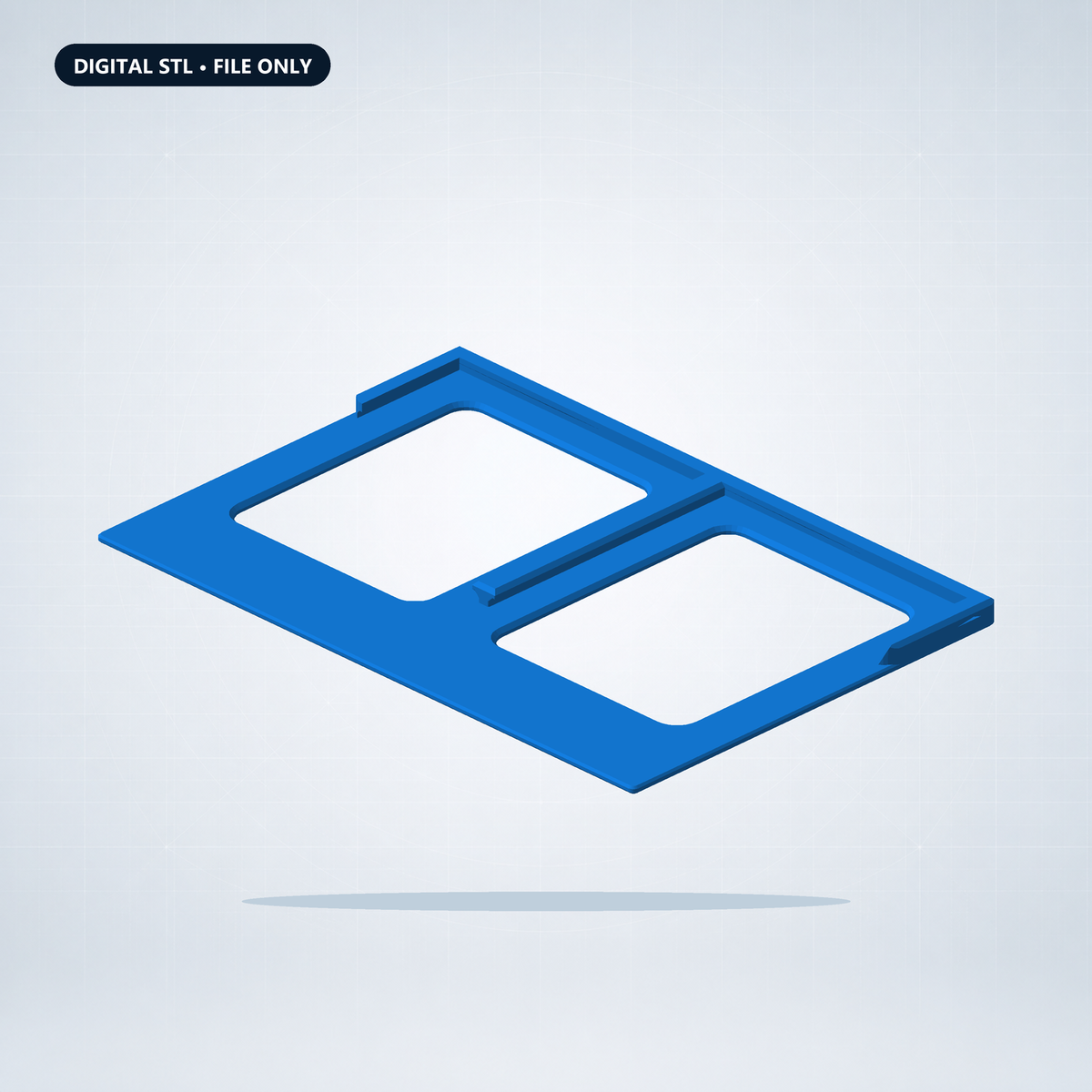

Flat two-position frame
Inspect the V2 geometry before you print
Product media shows the low-profile frame, two viewing openings, and measured overall footprint.
Images are digital renders, not photographs of a printed part. No physical fit, retention, durability, or print test has been completed.
Technical details
Check the V2 geometry before printing
Compare the nominal position envelopes and viewing openings with your actual toploaders, then confirm the interpreted millimeter size in your slicer.
| Specification | 2x1 Toploader Holder V2 |
|---|---|
| Product format | Digital STL only |
| Overall model size | 163.648 x 110.724 x 6.300 mm |
| Nominal envelope per position | 77.724 x 103.124 mm |
| Minimum viewing opening | Approximately 58.100 x 73.800 mm per position |
| Position separation | 3.000 mm |
| Unit interpretation | STL is unitless; geometry is interpreted as millimeters and must be verified in the slicer |
| Mesh validation | One watertight body; 932 triangles; zero boundary and non-manifold edges |
| Reference slice | OrcaSlicer 2.3.2-beta; automatic supports enabled and support toolpaths generated |
| Physical test status | No physical fit, retention, durability, or print test completed |
Before you buy
Know the file, fit, and validation limits
Review the measured geometry, unit interpretation, and untested physical performance before purchasing.
Is this a physical frame?
No. This listing includes one V2 digital STL file. No physical frame, toploaders, cards, filament, G-code, or other illustrated items are shipped.
Will my toploaders fit?
Fit has not been physically verified. Each nominal position envelope is 77.724 x 103.124 mm, with an approximately 58.100 x 73.800 mm minimum viewing opening. Measure your actual toploaders and allow for printer and material tolerances before printing.
What units should I use?
STL files do not store a unit. This geometry is interpreted as millimeters. Before slicing, confirm that your software shows an overall size of 163.648 x 110.724 x 6.300 mm.
Does it require a specific orientation or supports?
No universal orientation or support guarantee is provided. One minimum-Z reference slice with automatic supports enabled generated support toolpaths. Choose settings for your own printer and material, then inspect bridges, supports, first-layer contact, and the complete preview before printing.
What has been validated?
The digital mesh validates as one watertight body with 932 triangles, zero boundary edges, and zero non-manifold edges. Physical fit, retention, durability, and print performance have not been tested.
